JS-900 Series
- Sine , Square, Triangular and Pulse Waveforms.
- LCD Display 16 character by 1 line shows frequency & output waveform
- Wide Frequency range : 1 Hz to 1 MHz, 2 Hz to 2 MHz, 3 Hz to 3 MHz in three separate models
- Direct Digital Synthesizer IC based design with crystal oscillator gives exceptional frequency accuracy
- Low phase noise and good spurious performance
- Variable DC offset facility with offset enable
- Standard 50 ohms output impedance
- Compace size enables space saving
- Low distortion sine wave output

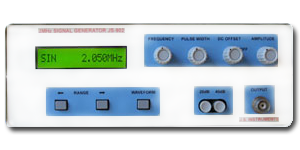

J S Instruments Signal Generator Model JS-901 is a low cost unit built using state of the art techniques. The LCD display directly displays the output frequency with good calibration accuracy as also output waveform type. Sine, Square, Triangular and Pulse wave forms are available. The digital architecture of DDS eliminates frequency drift due to component ageing and temperature variation.
The impressive performance and low cost makes it ideally suited for service, educational, industrial and biomedical applications. The front panel controls are all pushbuttons and knobs and ergonomically arranged for ease of operation. The output signal can be conveniently limited to -20 dB, -40 dB or -60 dB by fixed attenuator. The instrument is compact, rugged and lightweight.
TECHNICAL SPECIFICATIONS
MODEL |
||||
JS-901 |
JS-902 |
JS-903 |
||
WAVE FORMS | Sine | 1 Hz to 1 MHz | 2 Hz to 2 MHz | 3 Hz to 3 MHz |
Square | 1 Hz to 1 MHz | 2 Hz to 2 MHz | 3 Hz to 3 MHz | |
Triangle | 1 Hz to 0.5 MHz | 2 Hz to 0.5 MHz | 3 Hz to 0.5 MHz | |
Pulse | 1 Hz to 1 MHz | 2 Hz to 2 MHz | 3 Hz to 3 MHz | |
Selection | push button switch | |||
FREQUENCY | Readout | 3½ digits LCD display with direct display in Hz, KHz, MHz | ||
Accuracy | 9% < 2 Hz | |||
4% - 2 Hz - 5 Hz | 4% - 2 Hz - 5 Hz | 4% - 3 Hz - 5 Hz | ||
2% - 5 Hz - 10 Hz | 2% - 5 Hz - 10 Hz | 2% - 5 Hz - 10 Hz | ||
0.8% - 10 Hz - 100 Hz | 0.8% - 10 Hz - 100 Hz | 0.8% - 10 Hz - 100 Hz | ||
0.1% > 100 Hz | 0.1% > 100 Hz | 0.1% > 100 Hz | ||
Selection | 2 nos. push button switches with separate fine control | |||
OUTPUT | Socket | BNC | ||
Amplitude | 20 volts pk-pk | |||
Impedance | 50 ohm | |||
Offset with enable | ± 5V continuously adjustable, attenuated by step attenuator | |||
Level flatness | ± 2% from 1 Hz to 100 KHz | ± 2% from 2 Hz to 200 KHz | ± 2% from 3 Hz to 300 KHz | |
ATTENUATOR | Attenuation | 0 dB, 20 dB, 40 dB, 60 dB | ||
Selection | two station push button switch | |||
SINE OUTPUT | Distortion | 0.6% max @ 20V pk-pk, 0.3% max @ 2V pk-pk (Fo = 10 KHz) | ||
SQUARE OUTPUT | Rise & Fall time | < 100 nsec | < 70 nsec | < 60 nsec |
TRIANGLE OUTPUT | Linearity error | 0.2% (Fo = 10 KHz, 5% to 95%) | ||
PULSE OUTPUT | Rise & Fall time | < 100 nsec | < 70 nsec | < 60 nsec |
Duty cycle variation | 15% to 85% | |||
GENERAL | Operating Temp. | 0 to 50°C (Accuracy specified at 25°C) | ||
Power | 230 V AC ±10%, 50 Hz, 5 VA | |||
Dimensions | 215 mm (W) x 85 mm (H) x 205 mm (D) | |||
Weight | 1.8 Kg approx. | |||
Accessories | Operating manual |
